Low Residue Counterflow Cooler 1.5 / 2.2kw Low Power Consumption SS304

Name: Low Residue Counterflow Cooler 15 22kw Low Power Consumption SS304
Brand: Gracias
Price: 1 USD

Low Residue Counterflow Cooler 1.5 / 2.2kw Low Power Consumption SS304 Manufactures

Brand Name : Gracias

Model Number : YH-LM-LS

Place of Origin : China

MOQ : One set

Price : As discuss

Payment Terms : TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING

Supply Ability : 300 sets per month

Delivery Time : 25-30 work days

Packaging Details : Standard export packaging

Voltage : 220V/380V 50Hz-60Hz

Warranty : 12 months

Condition : New

After-sales Service Provided : Online support, Video technical support

System : PLC

Material : SS304

Power source : electric

Origin : china

Power : 1.5-2.2kw

Contact Now

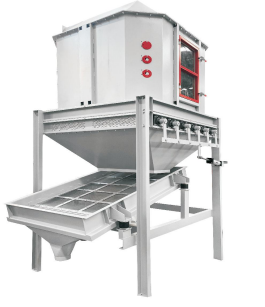

Counterflow Cooler

Freature:

1. The counterflow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;
2.Slide reciprocating discharger has smooth and reliable discharging, low residue;
3.Low power consumption, ease of operation;
4.Pellet temperature after cooling is less than +3°C~5°C ambient temperature;
5. Capable of cooling pellets.

Parameter:

Model	Capacity(t/h)	Power(kw)	Function and application
SKLN 11×11	1-2	1.5	1.Counter-flow coolers are mostly used for feed cooling in large feedproduction lines.The materials are cooled in layers by sucking airfrom the bottom to the top. 2.The latest octagonal cooling box design has no cooling dead corners.The top cover of the cooler is made of stainless steel, which caneffectively prevent rapid corrosion caused by the accumulation of moisture on the top, and has a long service life; stainless steel closedair feeder is used for feeding, the air inlet area is large, and the coolingeffect is remarkable;
SKLN14×14	2-4	1.5
SKLN17×17	4-7	1.5
SKLN20×20	7-12	2.2
SKLN24×24	12-20	2.2
