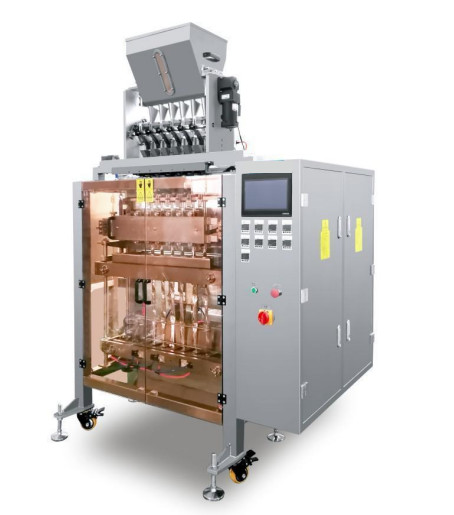

YH-YK520/YK720 Multi-row Granule Packaging Machine
Applications:
- It is suitable for automatic packaging of liquid particles with good fluidityin food, health care and pharmaceutical industries, such as instant coffee, solid beverage, fruit enzyme powder, Baoji pills, white sugar,granules, Chinese medicine granules, etc.
Freature:
1.Adopt German Siemens PLC controller,color touch screen operation;Taiwan AIRTAC cylinder; France Schneider switching power supply.
2.Full pneumatic control, simple operation,less wear parts in the later stage.reducing parts replacement
3.Material:The contact part of the box and material is made of SUS304 stainlesssteel, which meets GMP production standards.
4.The heat-generating parts and moving parts are hidden in the protective cover,which is safe and reliable.
5.The equipment is equipped with casters for easy handling and movement.
Mechanical characteristics and product characteristics:
1.Customize the screw according to the crushing number of the material,the dusting property,and the sugar content, so as to ensure that thematerial is not blocked during the filling process, and the precision ishigh.
2.Rounded shaped sachet, can design the size of the nozzle, tearhorizontally to prevent the material from spilling; the arc corner can also prevent children from scratching Eye corners, increasing product safety.
3.Longitudinal sealing adopts side sealing, longitudinal sealing and tying; longitudinal sealing and sealing structure can be opened fromthe middle to both sides.
4.Punching die adopts SKH-9 material, after six processing techniques,high durability and long service life.
5.Add a disinfection lamp at the film pulling film to carry out preliminarydisinfection of the film.
Parameter:
| MODEL NUMBER | YH-YK520 | YH-YK720 |
| Fillig range | 1-20ML | 1-50ML |
| Rows | 1by6 | 1by6,1by10 |
| Sachet size | W:25-38mm L:30-170mm | W:25-55mm L:30-170mm |
| Max.film width | 520mm | 720mm |

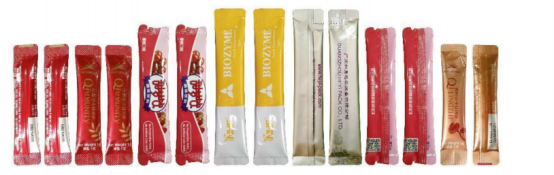

| Sachet type | Stick with round corners |
| Filling range | Volumentric cups |
| Capacity | 120-200 bags/min PPM | 200-350 bags/min PPM |
| Power voltage and consumption | 220V50-60HZ/11KW | 220V50-60HZ/11KW |
| Air pressure and consumption | 0.6m³/min 0.6-0.8Mpa | 0.6m³/min 0.6-0.8Mpa |
| Dimension(L*W*H) | 1410*1700*2500mm | 1540*1700*2500mm |
| Weight | 600KG | 650KG |
| Packaging film materials | PE laminated film, such as PET/AL/PE,PET/PE,Nylon/PE. etc.
Thickness: 0.08~0.12mm(3 or 4 layers); lnner core diameter: 75mm Outer roll diameter:500mm |
