1000ml Liquid Filling Capping And Labeling Machine Production Line

Name: 1000ml Liquid Filling Capping And Labeling Machine Production Line
Brand: Gracias
Price: 1 USD

1000ml Liquid Filling Capping And Labeling Machine Production Line Manufactures

Brand Name : Gracias

Model Number : Filling and capping machine

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 30sets per month

Delivery Time : 20-40work days

Packaging Details : Standard export package

Voltage : 220V 50Hz

Condition : New

Usage : Bottle filling and capping

Warranty : 1 Year

Control system : PLC

After-sales service provided : Online support,Video technical support

Contact Now

1000ml Liquid Filling Capping And Labeling Machine Production Line

Brief Introduction of Equipment

This machine is a quantitative automatic liquid filling machine,which can be used for filling liquids, thin, viscous and thick bodies.It is suitable for all kinds of round bottles, flat bottles andother special-shaped bottles.The design of this machine adoptslinear motion.The PLC logic controller and various detection andinduction devices and the

retracting and unfolding of the cylinderachieve the purpose of automatic control, with bottle filling, nobottle filling, filling without foam and dripping, and the mostadvanced touch screen operation screen It is at the touch of abutton and fully complies with GMP standards.

Main configuration

Program Controller	Siemens, Germany
Touch screen	German Siemens 7-inch color
Pneumatic components	Taiwan AIRTAC/Japan SMC
Capping motor	Servo motor
Photoelectric sensor	Germany LEUZE or Germany SICK,Japan Panasonic
The beginning of relay and air	French spinner, Shenle, Delixi
Suction pump	customer's choice
Motor inverter	Siemens, Germany
Conveying speed motor	750W domestic frequency conversion motor
Bottle unscramble method	bottle feeder
Flling equipment type	linear
Flling quantitative principle	piston type
Conveyor belt material	82.6mm wide POM chain belt, speed0-15/min, height above ground 750mm± 25mm
Number of filling heads	8 Heads
Filling range	500ml-1000ml
Filling speed	200-2500 bottles/hour
Filling machine sealing ring material	PTFE, fluorine rubber
Machine cover	304# stainless steel, material tank, filling nozzleand liquid contact parts are made of 316# stainless steel,foodgrade PP
Exposed parts	304# stainless steel, anodized aluminum alloy,electroplated 45# steel, plastic parts
Power	about 4.2KW/220V
Air pressure	0.6-0.8MPa

◆ lt can be compatible with a certain range of bottles of different shapes and

specifications.The specific bottle must be placedon the machine to pass the test.

1000ml Liquid Filling Capping And Labeling Machine Production Line

Product Tags:

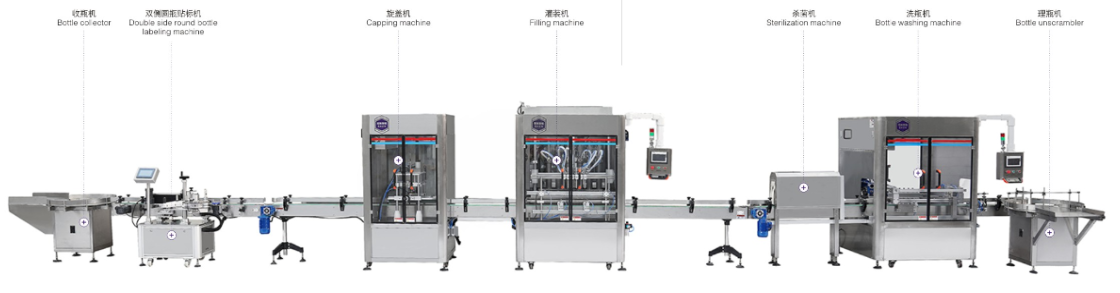

1000ml Liquid Filling Capping And Labeling Machine Production Line Images
